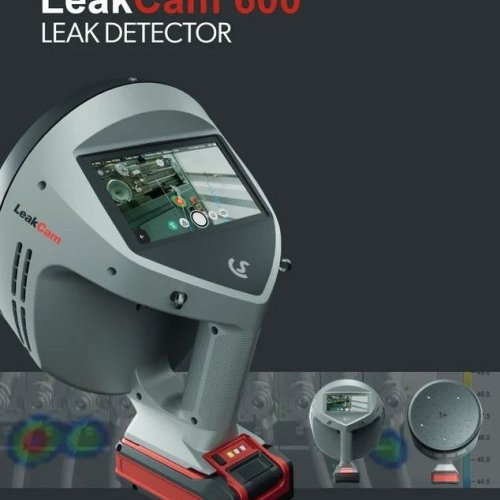

Leak Detector with Acoustic Camera

Link Copied

MOQ : 1 Piece

Business Type Exporter, Supplier, Importer
Air-leak-tester-leakcam-600-leak-detector View
Power Source Replaceable Battery System
Type Leak Detectors
Click to view more

Product Details

Certification
ISI Certified
Wave lenght
630, 660 nm
Output power
< 1 mW (laser class 2)
Portability
Handheld With Carrying Strap
Detection
Compressed Air And Gas Leaks
Resolution
1280 X 720 Pixel
Frequency range
2-80 kHz
Product Code
LC 600

CS INSTRUMENTS has been a leading global manufacturer of measurement technology for compressed air and gases for more than 20 years. Many years of feedback and experience from several thousand satisfied customers of the previous 300/400/450/500 series leak detectors have been incorporated into the development and research of the LeakCam 600.



Unlike many other manufacturers, CS INSTRUMENTS also has calibration stands and flow meters for precise consumption measurement and leakage measurement of compressed air and gases. This know-how, coupled with over 20 years of experience in the development of leak detectors, has gone into the development of the LeakCam 600.



During development, particular attention was paid to practicality and user-friendliness. What does it really mean for the service technician or maintenance engineer to search for and document gas leaks and compressed air leaks in the production process with a leakage camera in their hand for 8 hours, for example?



Unlike many other leakage cameras, the LC 600 was developed with these points in mind, such as:



The unique integrated laser distance measurement automatically calculates the distance to the leak. There is no need for time-consuming and incorrect distance measurement as with other devices. Precise measurement of the distance to the leak is the most important parameter for accurate leakage calculation.

 Special camera module for wide-angle view, allowing the user to quickly gain an overview of larger rooms

  • LED for illuminating dark rooms
  •  Carrying strap, see illustration
  •  Battery replacement concept
