27,000.00 / Piece
| Business Type | Exporter, Supplier, Importer |
| Country of Origin | India |
| Standard Sensitivity | 100mV/g ±10% nominal @ 80Hz |
| Frequency Response | 2Hz to 10kHz ±5% (-3dB @ 0.8Hz) |
| Click to view more | |
Product Details
Mounted Base Resonance
18kHz
Isolation Base
Isolated
Dynamic Range
±80g
Electrical Noise
0.1mg max
Temperature Range
-55 to 140°C
Bias Voltage
12V DC (nominal)
Case Material
Stainless Steel
Weigh
110g
Material
Stainless Steel
IP Rating
IP67

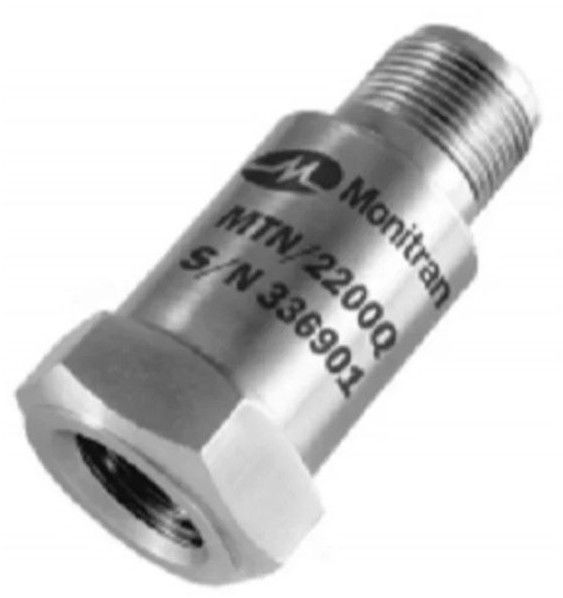

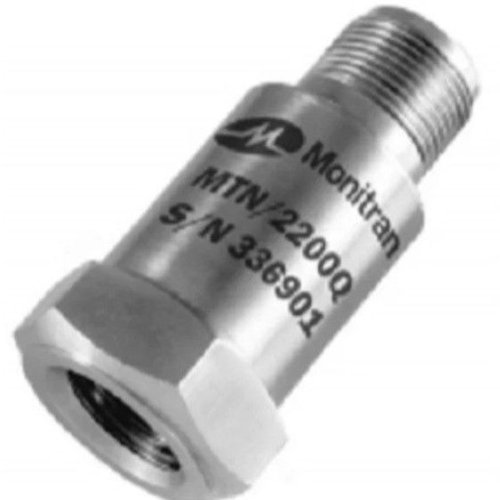

General-purpose top-entry constant current accelerometer with isolated AC output. Made from robust stainless steel throughout for long-term vibration analysis in harsh environments. Internal electronics are isolated to minimize noise with increased bias voltage stability.
Sealed to IP67 and includes 2-pin MS connector, 4-pin M12 connector, or stainless steel over-braided ETFE cable, and is available with a wide range of mountings.
Applications:
- Data collection
- Heavy industry
- Paper machinery
