Laser & Optical Measurement Systems

Thanks to innovative eye hyper-tracking technology, VPS 19 smart glasses measure eye movement with such precision that the wearer’s gaze point can be determined without misinterpretation. The discreet display indicates in real time exactly where the person is focusing their attention. This enables clear, loss-free communication across language barriers and in noisy environments, saving both time and money.

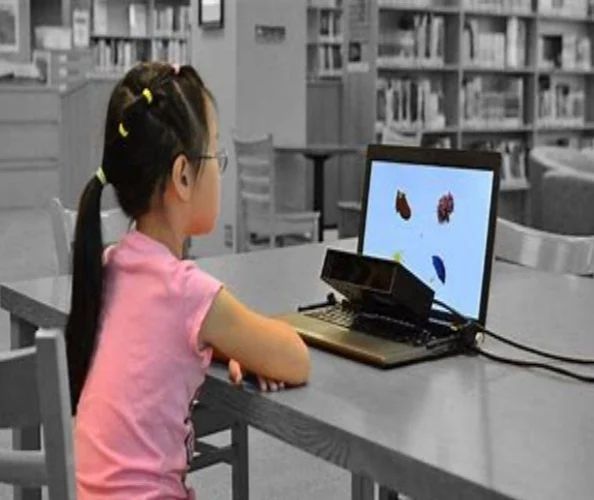

The EyeLink Portable Duo by SR Research delivers the highest quality eye-tracking data in a compact, easily transportable system. Everything needed to take your EyeLink lab on the road now fits into a carry-on bag. The Portable Duo features distinct dual-use data collection modes unique to EyeLink trackers, with specialized algorithms for **head free-to-move** and **head-stabilized tracking**. With the same high precision, accuracy, and low data loss that EyeLink systems are renowned for, the Portable Duo meets the scientific demands of researchers across various fields, enabling high-quality data acquisition even in medical, educational, and home settings.

Distinguishing Features

• Compact, high-performance camera hardware: Produces precise and accurate measurements of gaze location and pupil size.
• Dual-use system: Operates in discrete remote, head free-to-move and head-stabilized modes, each with unique algorithms for low noise and high accuracy.
• High sampling rates: Binocular sampling rates up to 2000 H in head-stabilized mode and 1000 Hz** in head free-to-move mode, supporting:
•  Gaze-contingent paradigms
•   Microsaccade detection and measurement
•    Clinical oculomotor assessment
•    Pupillometry

Medical-grade design:Complies with IEC 60601-1 standards, suitable for clinical and hospital use.

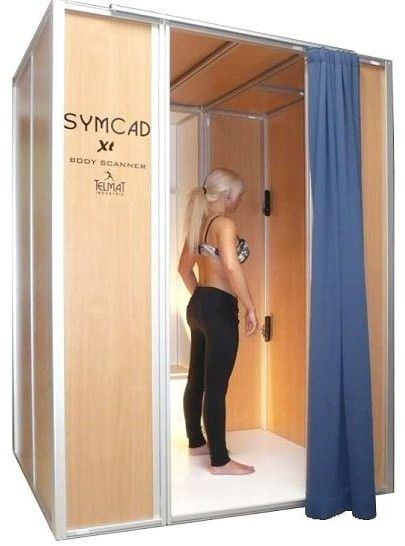

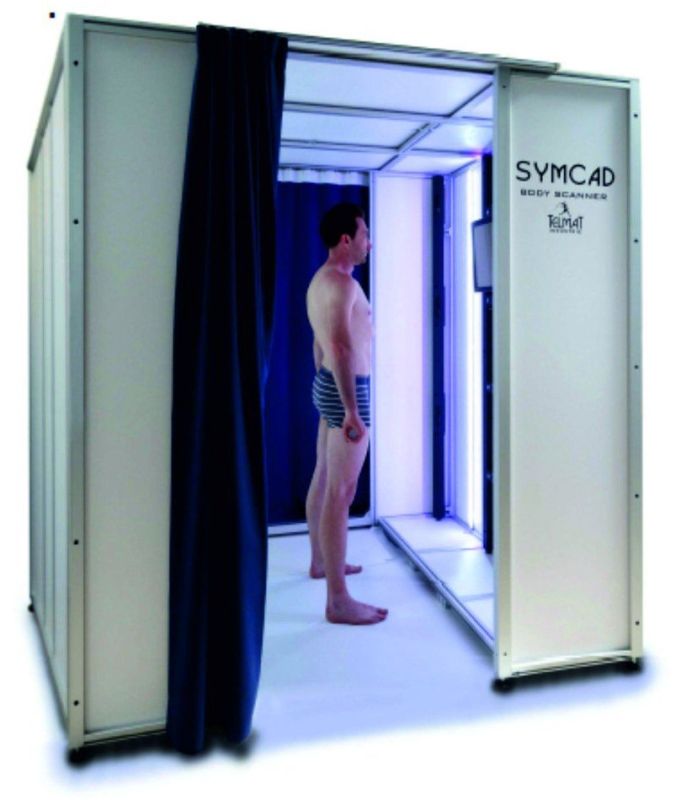

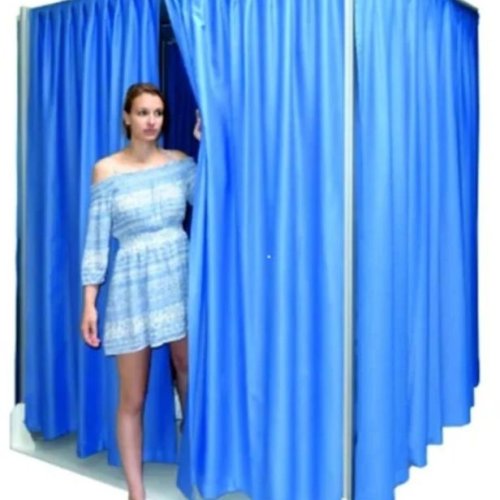

Specifications / Features:

•  Digital Data Capture PC Workstation (Microsoft Windows 8.1 Pro – English version)
•  Automatic calibration device with removable electronic object
•  White LED lighting (4 LED ramps)
•  20 depth sensors, factory-calibrated, with electronics and wiring technology (patented by TELMAT) for electronic and optical infrared noise reduction
•  Unlimited license of SYMCAD and MORPHOBASE software programs:
•
• High-speed 3D capture (<1.5 seconds)
• Automatic body measurement extraction, export, and printing
•  Body shape analysis (extraction of body figure indicators)
• Management of measurement surveys
•  Automatic garment size recommendation
• Interactive control of body measurement extraction
• Local MORPHO™ relational database management system
• Parameterization of the MORPHO™ database (garment size conversion tables, user-defined measurements, etc.)
•  One-year warranty including hardware maintenance (‘return to factory’), software maintenance, and hotline support

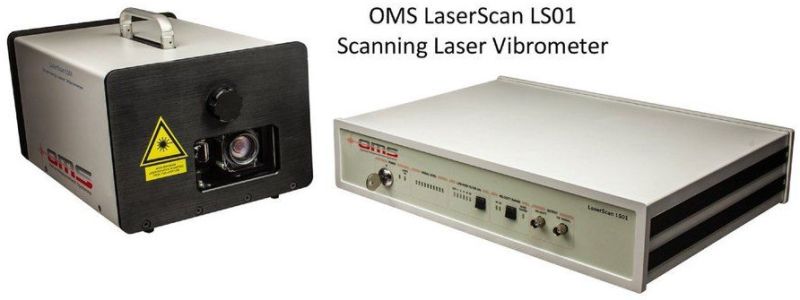

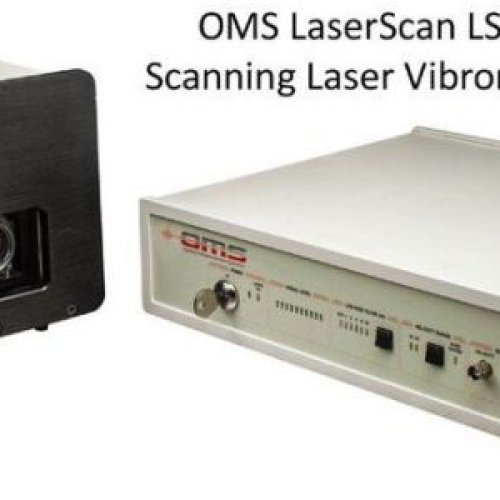

The OMS LaserScan LS01 Scanning Vibrometer developed by MetroLaser, is based on a patented electro-optical configuration. The system consists of a portable laser sensor head** and an electronic controller. The laser sensor head includes a laser, frequency modulator, photodetector, color CCD camera, and two computer-controlled scanning mirrors.The electronic controller provides both a demodulated velocity output and a 10.7 MHz frequency-modulated signal output. The front panel includes a signal strength indicator, two selectable velocity ranges, and a set of low-pass filter options.A comprehensive software package, including modal analysis, is available. The software registers the user-selected target, controls the mirrors, performs dithering if needed, collects and analyzes data, and displays results as **2D and 3D animations.

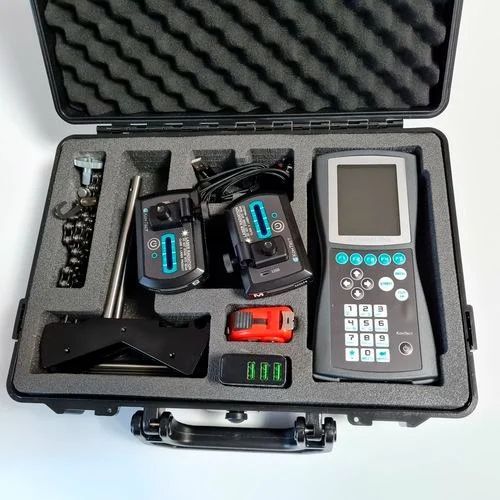

• Entry Level Laser Shaft Alignment
• Easy and precise shaft alignment
• Transducers with built-in Bluetooth and rechargeable batteries
•  Large 25 mm detectors
•  Distance between transducers on S and M machines – up to 3 m
• Extra-light wireless transducers weigh just 125 g – the lightest of their kind in the world
•  Electronic inclinometers allow convenient measurement in any shaft position
•  A rich set of options including horizontal and vertical machine alignment, direct PDF reports, etc.
•  High-capacity flash drive for measurement and report storage, USB interface with PC
•  ConSpect freeware for measurement archiving and report generation
•  Control display

Specifications / Features:

• Digital Data Capture PC Workstation (Microsoft Windows 8.1 Pro – English version)
• Automatic calibration device with removable electronic object
•  White LED lighting (4 LED ramps)
•  20 depth sensors, factory-calibrated, integrated in prewired stands with electronics and wiring, designed for integration into a customized shop layout (patented by TELMAT) for electronic and optical infrared noise reduction
•  Unlimited license of SYMCAD and MORPHOBASE software programs:
• High-speed 3D capture (< 1.5 sec)
• Automatic body measurement extraction, export, and printing
•  Body shape analysis (extraction of body figure indicators)
•  Management of measurement surveys
•  Automatic garment size recommendation
•   Interactive control of body measurement extraction
• Local MORPHO™ relational database management system
•  Parameterization of the MORPHO™ database (garment size conversion tables, user-defined measurements, etc.)
•  One-year warranty including hardware maintenance (‘return to factory’), software maintenance, and hotline support

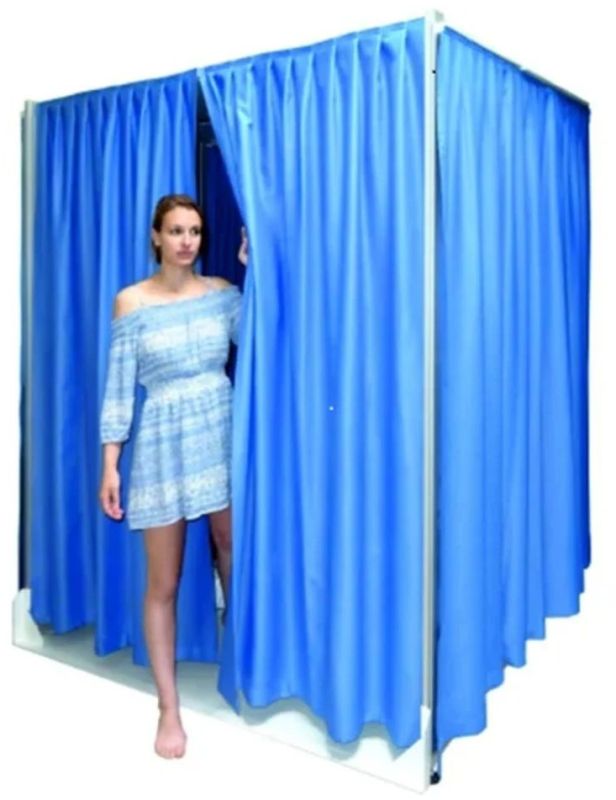

Specifications / Features:

•  Digital Data Capture PC Workstation (Microsoft Windows 8.1 Pro – English version)
•  Automatic calibration device with removable electronic object
•  20 depth sensors, factory-calibrated, with electronics and wiring technology (patented by TELMAT) for electronic and optical infrared noise reduction
•  Unlimited license of SYMCAD and MORPHOBASE software programs:
•  Automatic body measurement extraction, export, and printing
•    Body shape analysis (extraction of body figure indicators)
•    Management of measurement surveys
•    Automatic garment size recommendation
•    Interactive control of body measurement extraction
•  Local MORPHO relational database management system
• Parameterization of the MORPHO database (garment size conversion tables, user-defined measurements, etc.)
•  One-year warranty including hardware maintenance (‘return to factory’), software maintenance, and hotline support
