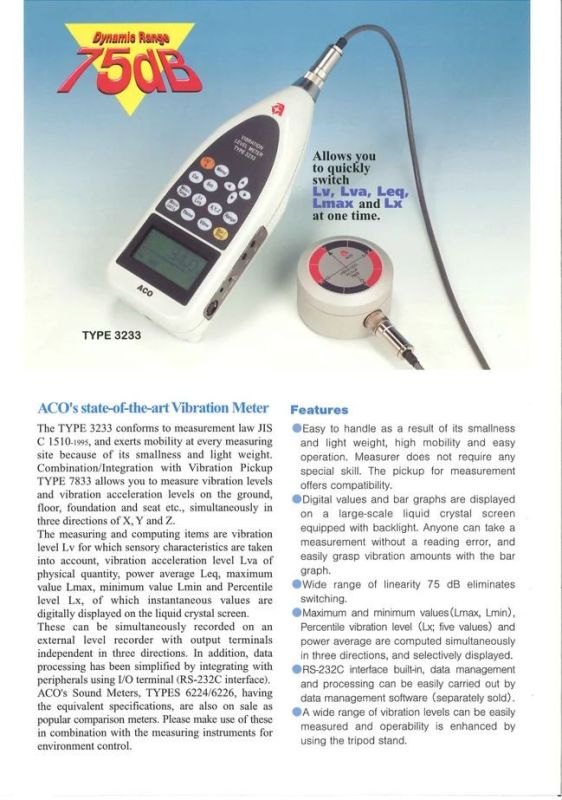

3233 Ground Vibration Meter

Type 3223 conforms to measurement law JIS C 1510-1995, and exerts mobility at every measuring site because of its small size and light weight. Combination/integration with Vibration Pickup Type 7833 allows you to measure vibration levels on the floor and vibration acceleration levels on the ground, floor, foundation, and seat, etc., simultaneously in three directions: X, Y, and Z. The measuring and computing items are: vibration level Lv (with sensory characteristics taken into account), vibration acceleration level Lva (of physical quantity), power average Leq, maximum value Lmax, minimum value Lmin, and percentile level Lx, of which instantaneous values are digitally displayed on the liquid crystal screen. These can be simultaneously recorded on an external level recorder with output terminals independent in three directions. In addition, data processing has been simplified by integrating with peripherals using I/O terminal (RS-232C interface). ACO's Sound Meters, Types 6224/6226, having equivalent specifications, are also on sale as popular comparison meters. Please make use of these in combination with the measuring instruments for environment control.

Features:

- Easy to handle due to small size, light weight, high mobility, and easy operation; no special skill required

- Compatible vibration pickup for measurements

- Digital values and bar graphs displayed on a large-scale liquid crystal screen with backlight; easy reading and visualization of vibration amounts

- Wide linearity range of 75 dB eliminates switching

- Maximum and minimum values (Lmax, Lmin), percentile vibration level (Lx; five values), and power average computed simultaneously in three directions and selectively displayed

- Built-in RS-232C interface; data management and processing easily performed via separately sold software

- Wide range of vibration levels easily measured; operability enhanced by using tripod stand
