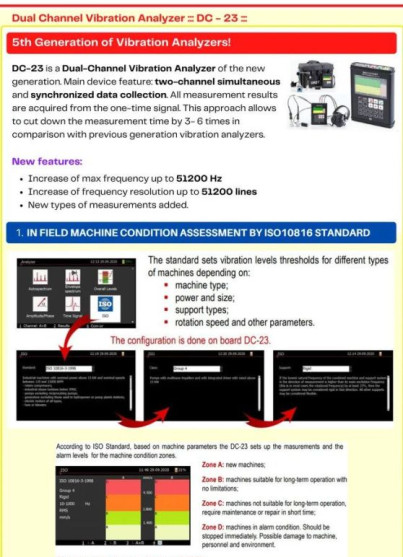

Dual Channel Vibration Analyzer

5th generation of vibration analyzers!

DC-23 is a dual-channel vibration analyzer of the new generation.Main device feature – two-channel simultaneous and synchronized data collection. All measurement results are acquired from a single time signal.This approach allows cutting down the measurement time by 3–6 times in comparison with previous-generation vibration analyzers.

New Features:

• Increase of max frequency up to 51,200 Hz
•  Increase of frequency resolution up to 51,200 lines
• New types of measurements added

Technical Specifications

Input

• Channels: 2 analog channels, 1 synchronization channel
• Converter types: Accelerometer, current clamp, tacho, microphone
• Frequency range: 0.5 – 51,200 Hz
• Non-linearity of AFR: ±5% (0.5 dB)
• Channel interference: –100 dB

Vibration Parameters

•  Measured parameters: Displacement, velocity, acceleration
•  Detector: RMS, peak, peak-to-peak, peak factor
• Measurement of vibration broadbands according to GOST:
•  2–1000, 10–1000, 10–2000 Hz
•   2–200, 3–300, 5–500, 10–5000, 500–2500 Hz
•   625–2500, 1200–2500, 2500–5000, 5000–10000 Hz
•   Additional: 10000–25000, 17000–25000 Hz

General Info

• Protection: IP65 (dust- and moisture-proof)
•  Operating temperature range: –20 to +50 °C
• Device weight without sensors: 1 kg
•  Dimensions: 143 × 194 × 39 mm
•  Operating time: ≥8 hrs.
•  Charging time: ≤4.5 hrs.
