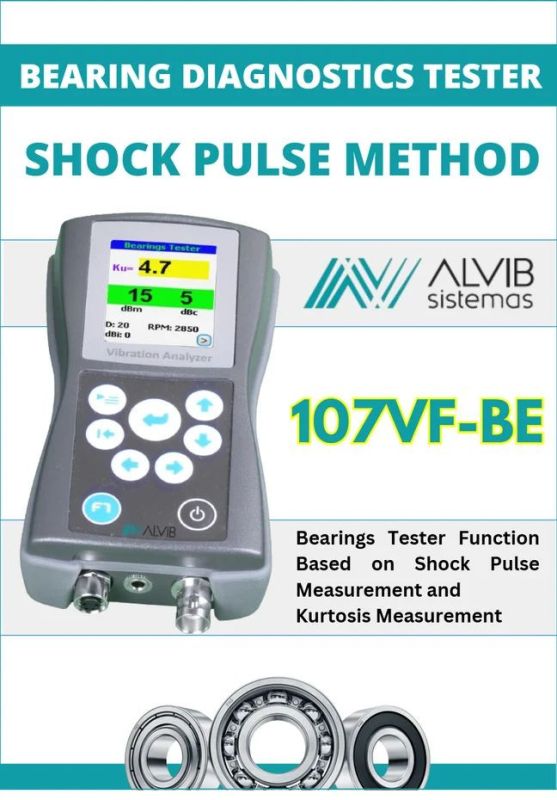

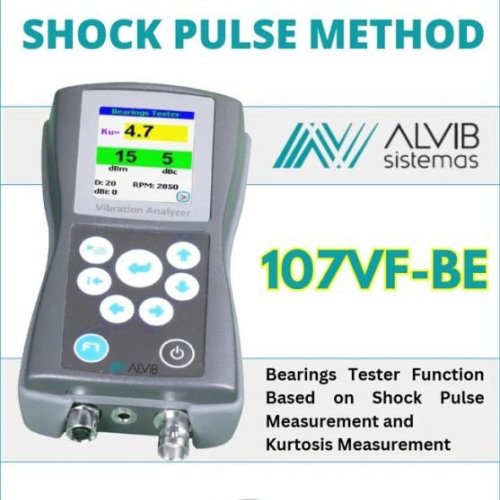

The 107VF Vibration Analyzer (Device, Analyzer) is a compact yet powerful vibration analyzer designed to measure overall vibration parameters, FFT spectrum analysis of rotating machinery, immediate evaluation against ISO 10816 standard, and condition monitoring by route-based measurements and data collection. Route files and data files exchange via email make it ideal for data collection at remote sites. Simple to use, with free firmware updates, and comes with data management and reporting software.

The 107VF Vibration Analyzer is a compact yet powerful vibration analyzer designed to measure overall vibration parameters, perform FFT spectrum analysis of rotating machinery, provide immediate evaluation against the ISO 10816 standard, and enable condition monitoring through route-based measurements and data collection. Route files and data file exchange via email make it ideal for data collection at remote sites. Simple to use, with free firmware updates, it comes with data management and reporting software.

Type 3223 conforms to measurement law JIS C 1510-1995, and exerts mobility at every measuring site because of its small size and light weight. Combination/integration with Vibration Pickup Type 7833 allows you to measure vibration levels on the floor and vibration acceleration levels on the ground, floor, foundation, and seat, etc., simultaneously in three directions: X, Y, and Z. The measuring and computing items are: vibration level Lv (with sensory characteristics taken into account), vibration acceleration level Lva (of physical quantity), power average Leq, maximum value Lmax, minimum value Lmin, and percentile level Lx, of which instantaneous values are digitally displayed on the liquid crystal screen. These can be simultaneously recorded on an external level recorder with output terminals independent in three directions. In addition, data processing has been simplified by integrating with peripherals using I/O terminal (RS-232C interface). ACO's Sound Meters, Types 6224/6226, having equivalent specifications, are also on sale as popular comparison meters. Please make use of these in combination with the measuring instruments for environment control.

Features:

- Easy to handle due to small size, light weight, high mobility, and easy operation; no special skill required

- Compatible vibration pickup for measurements

- Digital values and bar graphs displayed on a large-scale liquid crystal screen with backlight; easy reading and visualization of vibration amounts

- Wide linearity range of 75 dB eliminates switching

- Maximum and minimum values (Lmax, Lmin), percentile vibration level (Lx; five values), and power average computed simultaneously in three directions and selectively displayed

- Built-in RS-232C interface; data management and processing easily performed via separately sold software

- Wide range of vibration levels easily measured; operability enhanced by using tripod stand

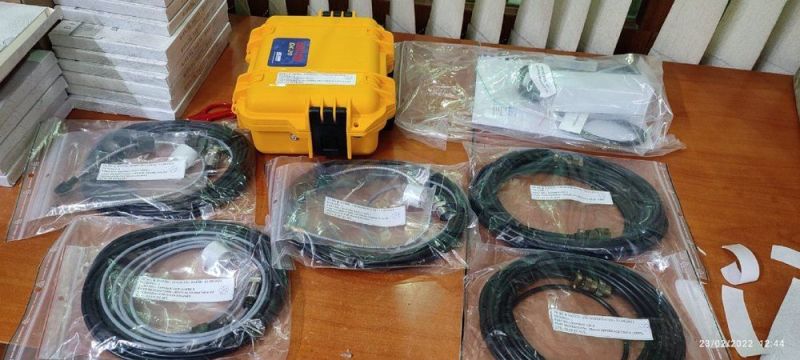

As one of the leading entities of this domain, we are engrossed in providing supreme quality DK-20 Marine Diesel Engine Analyzer. This system is equipped with a diesel detector. It is made compatible with various software packages available with an integrated PC for mobile usage. The offered system is manufactured by our ingenious professionals using the finest quality aluminum with the aid of pioneering techniques at our vendor’s end. Also, this system is extensively demanded for use in several industrial operations.

Features:

• High durability
• Weather resistance
• Easy to operate

Specifications:

•  DK-20: Single-channel compact portable system for full cylinder pressure analysis and automatic diagnostic
• DK-20/FV: Dual simultaneous channel compact portable system for cylinder pressure plus fuel pressure analysis and automatic diagnostic
• DK-100: Multichannel portable system for simultaneous data collection and real-time analysis, diagnostic, and observation of corrective actions
• DK-200: On-line systems provide continuous monitoring of engines up to 30 cylinders
• Up to eight engines can be monitored on one vessel and linked to an onboard PC running the online software

Application:

• This equipment can provide exact health details of the engine
• Faults, if any, including non-synchronous behavior of the cylinders, will also be indicated
•  Details of power developed by each cylinder and also by all the cylinders together are calculated and displayed
•  The unit is portable and can be taken to any location or ship to carry out the realistic assessment of engine health in the field whenever doubt arises about the same
•  Many more as explained in the literature attached

Benefits:

•  Saves fuel
•  Minimizes harmful SOx and NOx emissions
• Cuts downtime
•  Pinpoints problems that are starting to develop
•  Provides detailed and accurate information on engine health
• Optimizes engine efficiency
•  Advantageous for old vessels using obsolete offline engine monitoring technology
• Designed for real marine users
• Comprehensive analysis, trending, and reporting software
• Proven reliability, accuracy, ease of use, and durability — more than 9,000 units in use

 The software enables fleet-wide engine comparisons to be carried out at the click of a button. Features such as shop & sea trial comparisons, standard or customized engine reports, and the comprehensive analysis features for which the Doctor software is renowned have combined to make it the first choice for thousands of diesel engine operators.

 The software can be downloaded or provided on a USB key along with a guide to enable the operator to quickly familiarize himself with the application. The intuitive nature of the functions makes the learning process even easier.

 The software is supplied with a suite of sample engine measurements to experiment with.

 There is no restriction on the number of computers that the software can be used on, so engine measurements can be freely passed between operators, analysts, and managers.Any standard desktop or laptop PC with Windows™ 7 or 10 can be used.

The analyzer automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment, and looseness.The system is designed to enable a user to take vibration measurements from assets (e.g., pumps, motors, fans, and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored.The 9080 Vibration Analyzer & Smart Trend Meter also has an optional strobe attachment for determining machine speed and optional Bluetooth-connected headphones for listening to bearing noise.

•  Find machine faults before they stop your machine
• Increase productivity and lower maintenance costs
•  Industry-approved ear defenders with built-in Bluetooth headphones are also available to let you listen to bearing noise – or even listen to your phone!

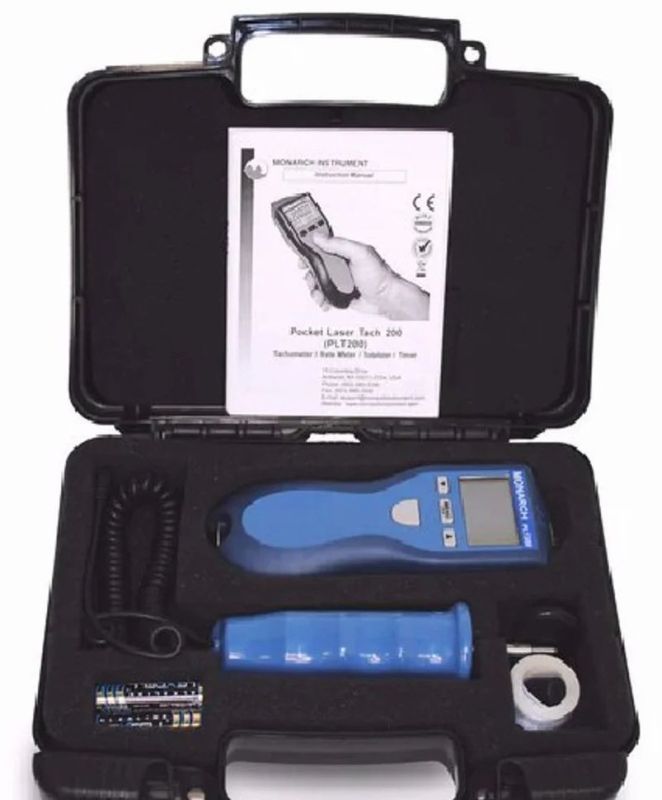

Pocket Laser Tachometer 200 tachometer/timer/totalizer with N.I.S.T. traceable certificate of calibration, and 12 in. of reflective tape. Kit also includes carrying case and remote contact assembly for contact speed measurements. The Monarch Pocket Laser Tach 200 (PLT200) is a digital, battery-powered portable optical tachometer, which operates up to 25 feet\* from a reflective target using a laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time, while providing a non-slip rubber surface for single-hand operation. PLT200 is a 32-function tachometer/ratemeter, totalizer/counter, and timer (stopwatch), which is programmable in both English and Metric linear rates. Support is built-in for both our optional remote contact assembly (RCA) and our remote sensors. PLT200 has a TTL-compatible pulse output to trigger devices like data collectors or stroboscopes. \*Performance subject to intensity of ambient light irradiation.

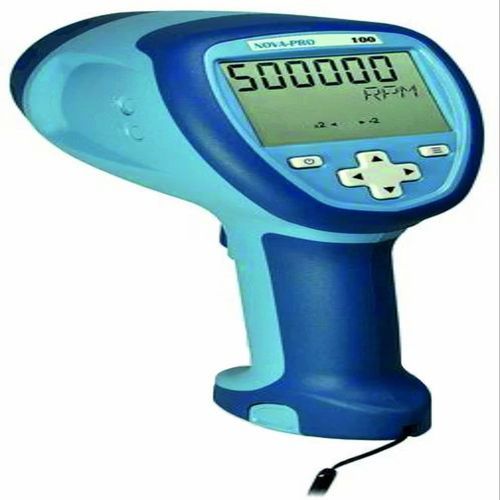

Monarch has combined all the features of the hand-held LED stroboscopes together with a full-function laser tachometer to create a compact, ergonomic, and extremely powerful two-in-one predictive maintenance tool. The Nova-Pro 100 stroboscope light source is made up of twelve LEDs which are extraordinarily bright yet extremely efficient, allowing cool continuous operation and extremely long battery life (up to 19 hours on a single charge). Continuous operation is also possible with the optional AC adapter. Designed for simple stroboscopic stop-motion inspection and RPM measurement applications. The integral laser module is an optional item that can be added to make the 100 a full-featured tachometer. Includes strobe, standard Li-ion battery pack, battery charging station with interchangeable wall plugs, and operation manual. Kit also includes plastic latching carrying case. AC models include 115/230 Vac wall adapter power supply with USA, UK, AUS, Euro adapter plugs, and operation manual instead of battery pack and charging station.

Key Features:

• Stroboscope & tachometer in one!
•  Super bright LEDs
• Removable laser module (optional on 100); integral optical sensor and flash trigger protected under US Patent 10,080,268
• Splash-resistant IP54 enclosure
•  1/4" x 20 tripod mount
•  Ergonomic one-handed operation
•  Removable rechargeable Li-ion battery
•  Continuous AC operation available

Benefits of LED:

•  Energy efficient with long battery life (19 hours typical)
•  Extremely bright, uniform light output
•  Completely silent
• Cool operation
• No lamp replacements
• Extremely high flash rates (up to 999,999 FPM)

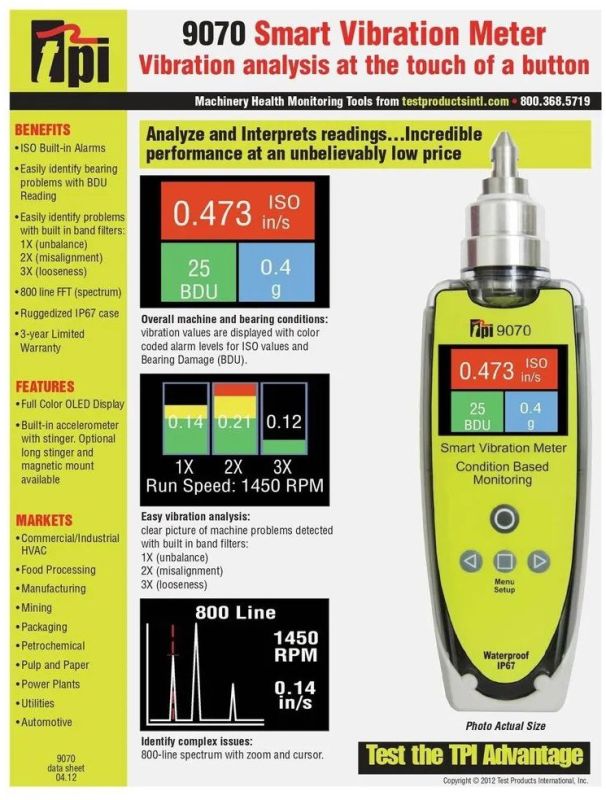

Vibration analysis at the touch of a button. Analyze and interpret readings; incredible performance at an unbelievably low price. Overall machine and bearing conditions: vibration values are displayed with color-coded alarm levels for ISO values and Bearing Damage Units (BDU).

Benefits:

•  ISO built-in alarms
•  Easily identify bearing problems with BDU reading
• 800-line FFT spectrum
•  Ruggedized IP67 case

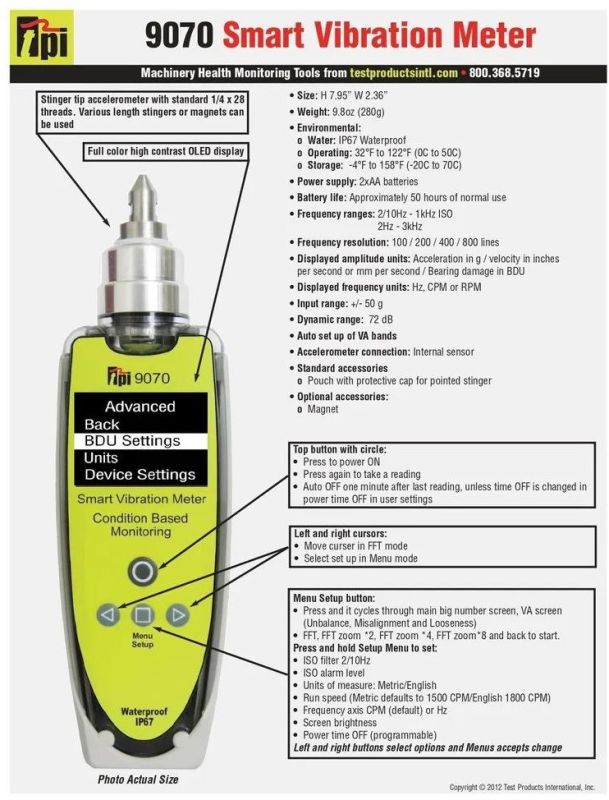

The 9070 is a simple-to-use vibration monitoring and analysis tool that allows easy display of vibration signals. The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment, and looseness.

Features:

Full-color OLED display

Easily identify problems with built-in band filters:

 1X (unbalance)

  2X (misalignment)

   3X (looseness)

 Built-in accelerometer with stinger; optional long stinger and magnetic mount available

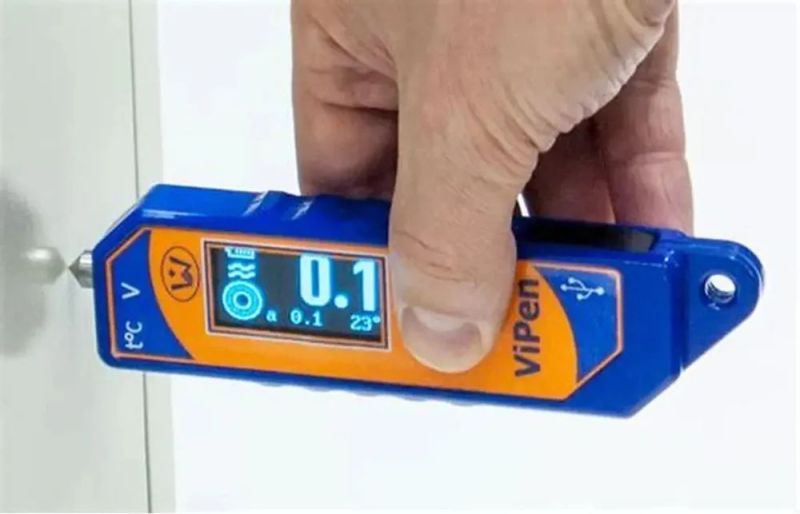

The ViPen vibrometer combines vibration measurement, temperature measurement, and rolling bearing diagnostics in a single compact device. Its pen-type design makes it pocket-sized and highly portable.

Operation:

•  Single-button operation for simplicity.
• Press and hold the button to take measurements; release to display the last measured value.
•  Automatically powers off after 60 seconds of inactivity to save battery life.

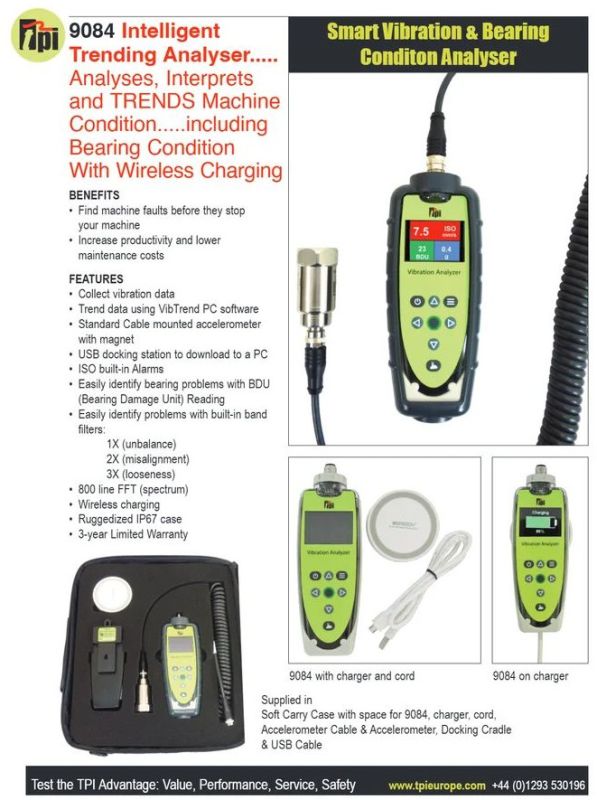

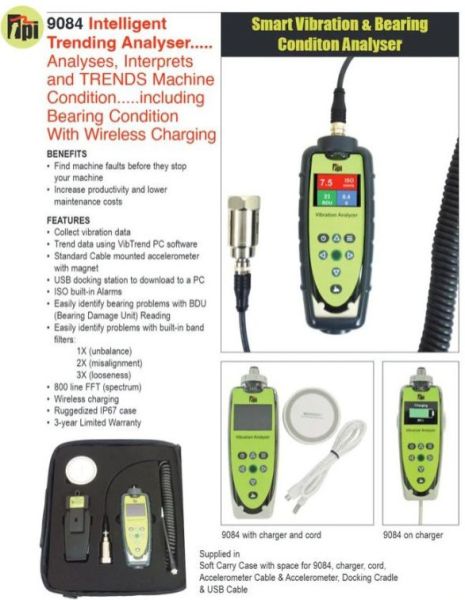

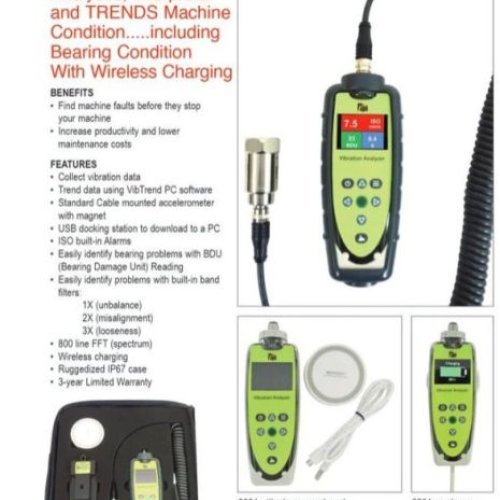

^{The Vib Meter 9084 is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals.}

The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness, as well as indicating the degree of bearing wear.

The Vib Meter 9084 unit is designed to enable a user to collect vibration measurements from assets (e.g. pumps, motors, fans and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored, analysed and trended with the included VibTrend PC analysis software.

VibTrend software gives you greater ease of use and flexibility.

• Store analyse and report on all your vibration parameters in one place.
• All information is just a click away. Colour coded alarms highlight problems. Trend lines show problems before they happen.

Overall machine and bearing conditions: vibration values are displayed with colour coded alarm levels for ISO values and Bearing Damage Units (BDU).

9084 Smart Vibration Meter

Identify complex issues: 800-line spectrum with zoom and cursor.

The Vib Meter 9084 and VibTrend is the latest easy to use high specification maintenance tool offering high level functionality and capability at extremely low cost.

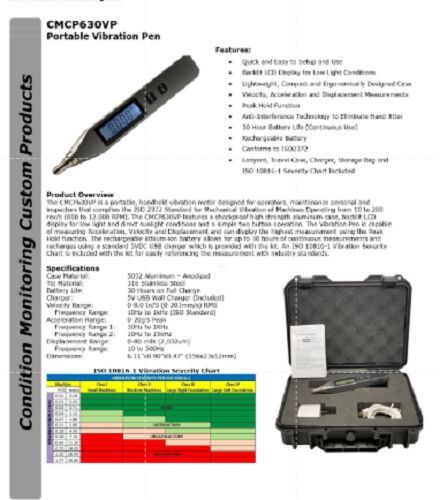

The CMCP630VP is a portable, handheld vibration meter designed for operators, maintenance personnel, and inspectors. It complies with the ISO 2372 Standard for Mechanical Vibration of Machines operating from 10 to 200 rev/s (600 to 12,000 RPM).The CMCP630VP features a shockproof, high-strength aluminum case, a backlit LCD display for both low-light and direct sunlight conditions, and simple two-button operation. The vibration pen is capable of measuring acceleration, velocity, and displacement, and can display the highest measurement using the Peak Hold function.The rechargeable lithium-ion battery allows for up to 30 hours of continuous measurements and recharges using a standard 5VDC USB charger (provided with the kit). An ISO 10816-1 Vibration Severity Chart is included for easy reference against industry standards.

The Vib Meter 9085-Ex is an intrinsically safe, simple-to-use vibration monitoring and analysis tool that allows easy display of vibration signals.

The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment, and looseness, as well as indicating the degree of bearing wear.

The Vib Meter 9085-Ex unit is designed to enable a user to collect vibration and temperature measurements from assets (e.g., pumps, motors, fans, and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored, analyzed, and trended with the included C-Trend II PC analysis software.

C-Trend II software gives greater ease of use and flexibility.

• Store, analyze, and report on all your vibration parameters in one place
•  All information is just a click away
• Color-coded alarms highlight problems
•  Trend lines show problems before they happen

Overall machine and bearing conditions:** Vibration values are displayed with color-coded alarm levels for ISO values and Bearing Damage Units (BDU).

9085-Ex Smart Vibration Meter:

Identify complex issues: 800-line spectrum with zoom and cursor

The Vib Meter 9085-Ex and C-Trend II is the latest easy-to-use, high-specification maintenance tool, offering high-level functionality and capability at an extremely low cost.

VEXO Overview

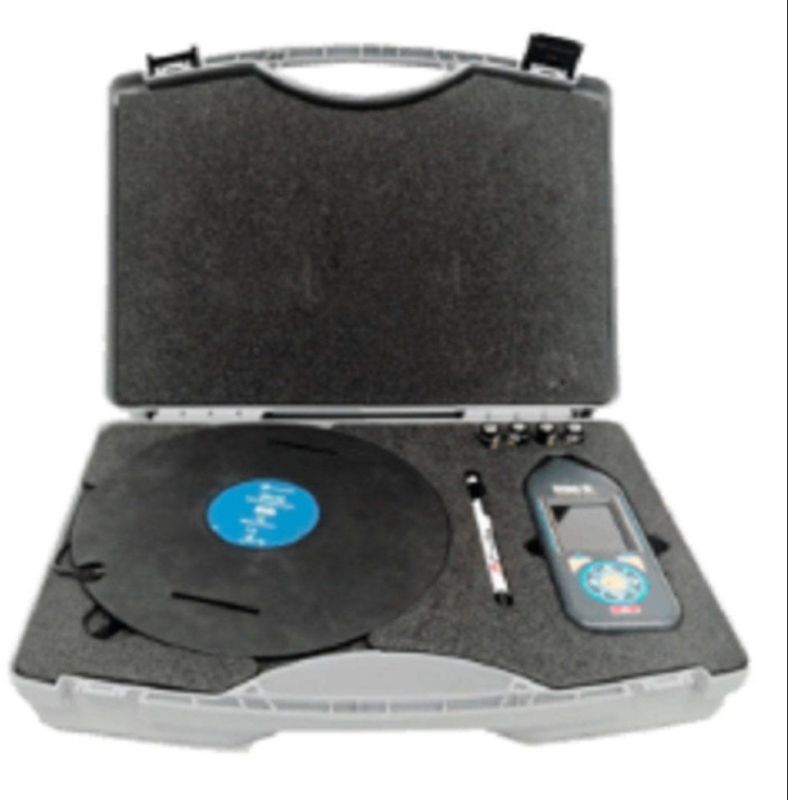

The VEXO GH2006H Hand-Arm Vibration Meter makes all the measurements required for a vibration risk assessment in line with regulations.  This fully featured meter has been designed to be very quick and easy to use. As it is not just a general vibration meter but is designed specifically for hand-arm vibration, there is no complicated setup or selection of measurement parameters.

Vibration and Noise Kits

We also offer kits with equipment to measure both vibration and noise in the workplace. For more information, please see our Combination Kits pages.

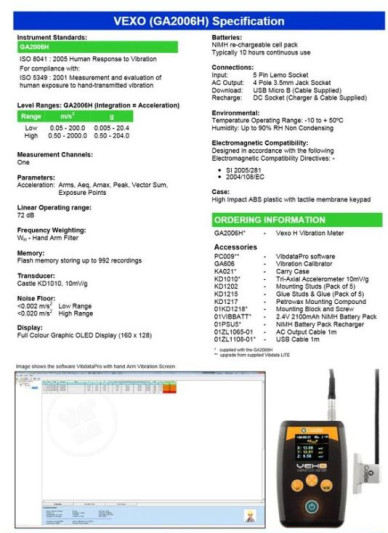

nical specification sheet** for the VEXO GH2006H Hand-Arm Vibration Meter.

Here’s a **technical specification sheet** with more detailed technical information for the **VEXO GA2006H Hand-Arm Vibration Meter**:

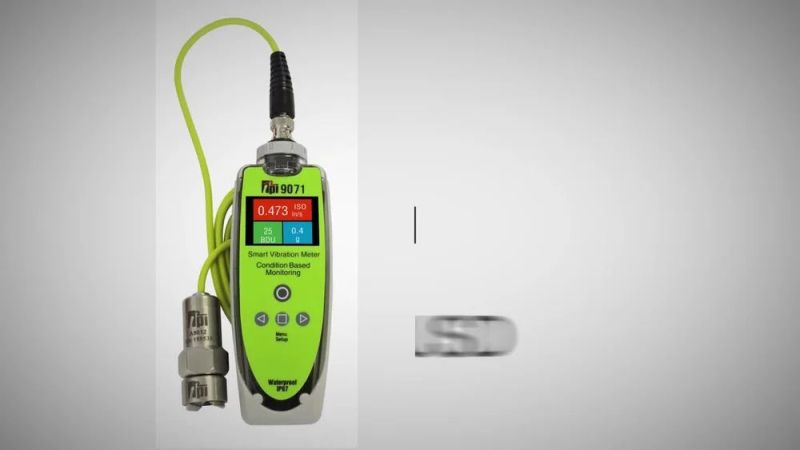

 9071 is a simple, easy-to-use, low-cost vibration meter. Record, analyze, and display vibration signals at the push of a button.

Benefits:

• Built-in ISO alarms
• Find machine faults before they stop your machine
• Increase productivity and lower maintenance costs

Features:

- Full-color LED display

- Collect data

- Standard cable-mounted accelerometer with magnet

- ISO built-in alarms

- Easily identify bearing problems with BDU reading

- Easily identify problems with built-in band filters:

  - 1X (unbalance)

  - 2X (misalignment)

  - 3X (looseness)

- 800-line FFT spectrum

- Ruggedized IP67 case
