Pen Type Bearing Damage Detector

Vibration analysis at the touch of a button. Analyze and interpret readings; incredible performance at an unbelievably low price. Overall machine and bearing conditions: vibration values are displayed with color-coded alarm levels for ISO values and Bearing Damage Units (BDU).

Benefits:

•  ISO built-in alarms
•  Easily identify bearing problems with BDU reading
• 800-line FFT spectrum
•  Ruggedized IP67 case

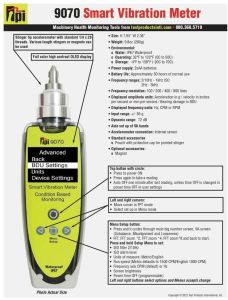

The 9070 is a simple-to-use vibration monitoring and analysis tool that allows easy display of vibration signals. The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment, and looseness.

Features:

Full-color OLED display

Easily identify problems with built-in band filters:

 1X (unbalance)

  2X (misalignment)

   3X (looseness)

 Built-in accelerometer with stinger; optional long stinger and magnetic mount available
