Std 500 Pen-Type Route Based Vibration Meter

STD-500 – Ultra-Portable Vibration-Measuring Instrument

The STD-500 is an ultra-portable vibration-measuring instrument with internal spectrum analysis functions, used for regular machinery condition monitoring.

Highlights:

• Bearing condition monitoring based on high-frequency enveloping
•  Store up to 500 points (LF waveforms or envelop waveforms)
•  Route or off-route data acquisition
•  PC connection via USB for detailed analysis
•  Explosion-proof – Ex ib IIB T3

Extra Features:

• Bearing condition detection
•  High-frequency spectrum analysis
•  RMS, Peak, and Peak-to-Peak vibration measurement
• Free firmware updates via USB

Multifunctional:

From quick on-site analysis to detailed data processing on your PC, including spectrum analysis, trend creation, fault location and severity detection, imbalance, misalignment, soft foundation issues, and maintenance of a machinery condition database.

Route and Off-Route Usability:

Uploading routes from **VibroDesigner Standard Analysis Software** facilitates both data acquisition and creation of a unified repository for diagnostic data, automatically uploaded to your computer.

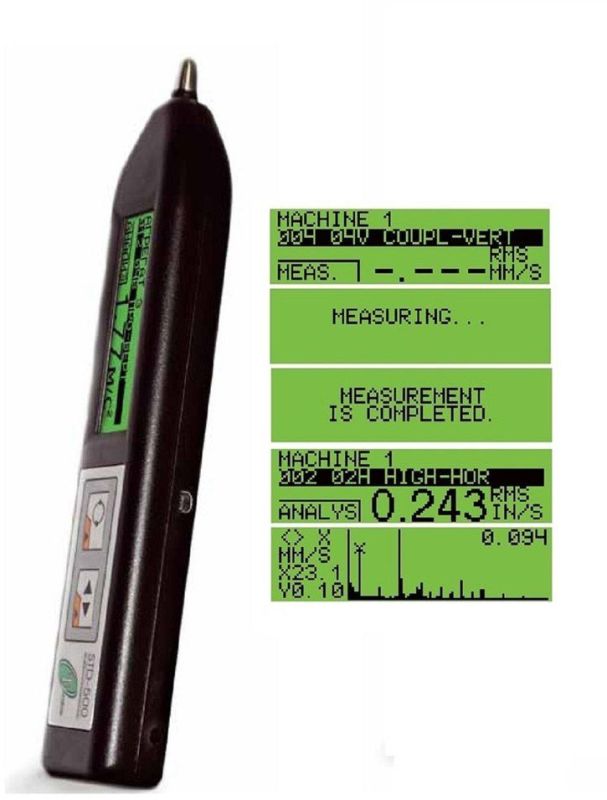

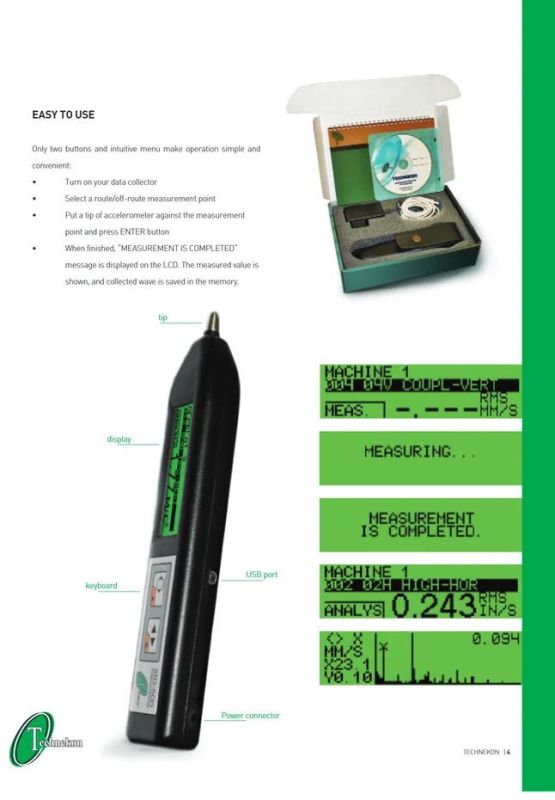

Easy-to-Operate:

With only two buttons and an intuitive menu, operation is simple and convenient:

1. Turn on your data collector.

2. Select a route or off-route measurement point.

3. Place the tip of the accelerometer against the measurement point and press **ENTER**.

4. When finished, the message **“MEASUREMENT IS COMPLETED”** is displayed. The measured value is shown, and the collected waveform is saved in memory.
