| Business Type | Exporter, Supplier, Importer |
| 107VF-B / B1 |  View |
| Certification | ISO 9001:2008 |
| Type | Vibration Analyzer |
| Click to view more | |
Product Details
Measurement Type
Acceleration, Velocity, Displacement
Frequency Range
0.5 Hz - 50 KHz
Accuracy
+/-2%
Data Storage
Up To 500 Waveforms
Analysis Types
Time Waveform, FFT Spectrum, Enveloping
Connectivity
USB/Ethernet For PC Data Transfer
Power Source
Built-in Rechargeable Battery
Special Features
Non-contact Infrared Tachometer, Envelope Spectrum For Bearing Fault Detection, Single- Or 4-plane Balancing
Additional Features
Optional Temperature Measurement, Route-based Measurements Supported

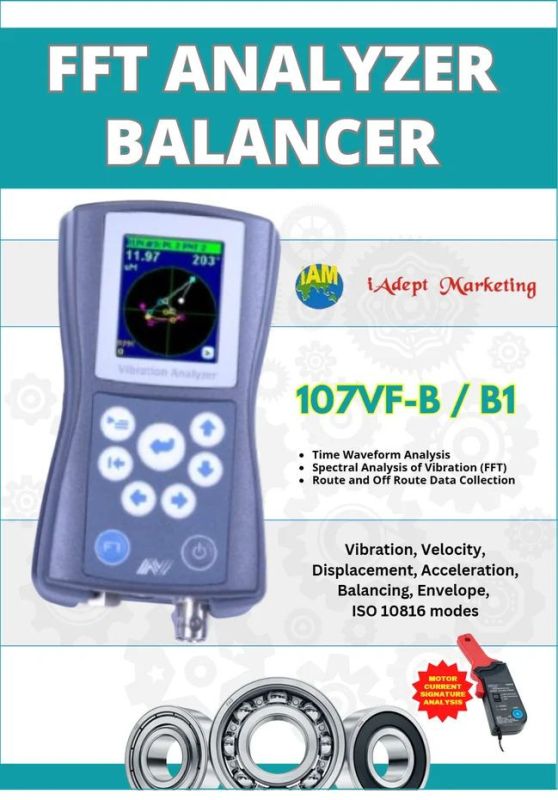

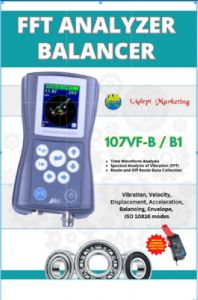

The 107VF-B / B1 / FFT Analyzer / Balancer (Device, Analyzer) is a compact yet powerful vibration analyzer designed to measure overall vibration parameters, FFT spectrum analysis of rotating machinery, immediate evaluation against ISO 10816 standard, balancing of rotating machinery, and condition monitoring by route-based measurements and data collection. Route files and data files exchange via email make it ideal for data collection at remote sites. Simple to use, with remote firmware upgrades, and comes with data management and reporting software.
Features:
- Possibility to obtain trends of vibration variation with the help of "ConSpect" software
- Time waveform analysis
- Display of peak-to-peak, RMS, and peak vibration values
- Non-contact infrared tachometer for measuring rotational speed
- Built-in rechargeable battery
- Envelope spectrum for bearing fault detection
- Spectrum analysis to verify the source of high shock pulse
- Single- or 4-plane balancing
- Optional temperature measurement and advanced route management software VibAnalyst FFTGraph2™

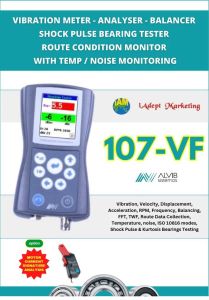

Looking for "107VF B Single Channel Vibration Meter & Data Collector" ?
