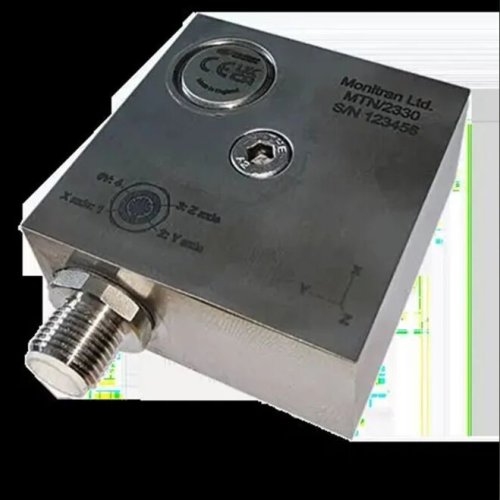

| Triaxial Accelerometer with Temperature |  View |
| Type | Accelerometer |
| Material | Stainless steel |
| Click to view more | |
Product Details
Application
Measuring Acceleration And Temperature In Three Axes
Acceleration Range
+-80g
Supply Voltage
12VDC (nominal)
Sensitivity
100mV/g +-10% nominal @ 80Hz
Operating Temperature
-40°C To 85°C
Heavy-duty side-entry constant current accelerometer with 3 isolated AC outputs (X, Y, and Z axes) and temperature. Made from robust stainless steel throughout for long-term vibration analysis in harsh environments. Internal electronics are isolated to minimize noise with increased bias voltage stability. Sealed to IP67 and includes 5-pin M12 connector and ¼"-28 UNF, M6, or M8 mounting bolt. Ideal for any application where vibration in all three spatial axes and temperature need to be measured.
