| Velocity Sensors |  View |
| Application | Continuous Vibration Monitoring In Harsh Environments |
| Type | Velocity Transducer |
| Click to view more | |
Product Details
Country of Origin
India
Output current
4-20mA DC proportional to rms velocity (mm/s)
Supply voltage range
12-32V DC (4-20mA)
Frequency response
2Hz to 1kHz +-10%
Mounted base resonance
5kHz
Transverse sensitivity
Less than 5%
Case Material
Stainless steel
Special Features
Internal Electronics Enclosed In A Faraday Cage, Isolated To Minimize Noise

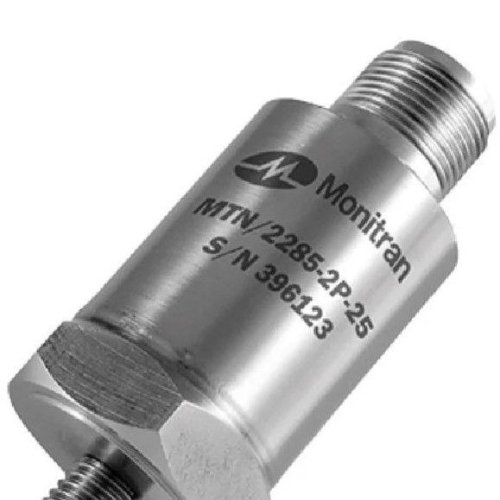

General-purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Internal electronics are enclosed in a Faraday cage and isolated to minimize noise. Sealed to IP67 with industry-standard two-wire 4–20 mA output proportional to sensor range that can connect directly to PLC, DCS, and other industrial controllers. Includes 2-pin MS connector and is available with a wide range of mountings.
