| Business Type | Exporter, Supplier, Importer |
| lightweight-accelerometer-mtn-1800-series |  View |
| Certification | ISO 9001:2008 |
| Acceleration Range | +/-10g (100g for 100 mV/g) |
| Click to view more | |
Product Details
Output Voltage
Non-isolated
Standard sensitivity
1000 mV/g +/-5%
Phase Shift
+/-5% up to 2kHz
Transverse Sensitivity
5%
Resonant Frequency
25 kHz
Current Range
0.5 mA to 8 mA
Isolation
Base Isolated
Bias voltage
12 volts DC
Temperature Co-efficient
0.08 %/ DegreeC
Weight
11 gms

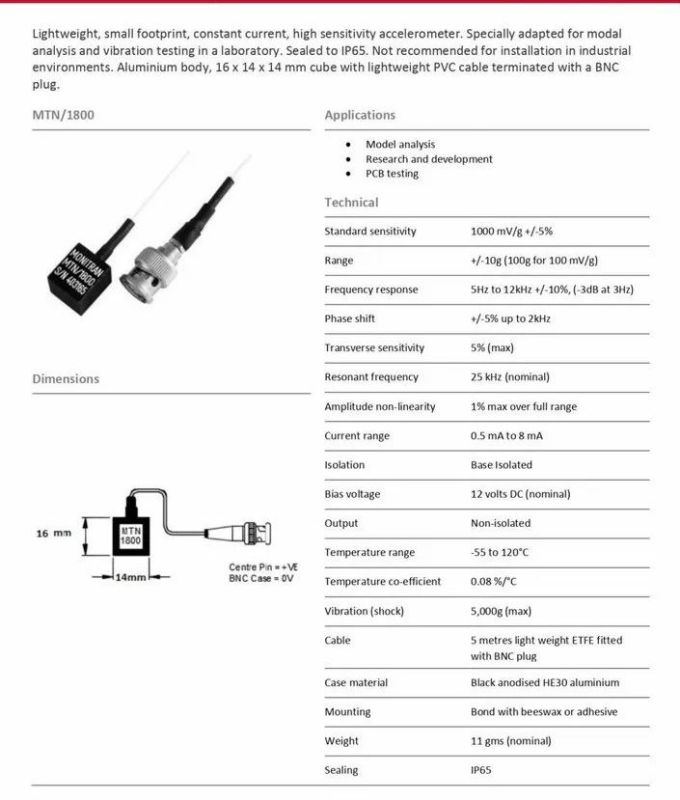

Lightweight, small footprint, constant current, high-sensitivity accelerometer. Specially adapted for modal analysis and vibration testing in a laboratory. Sealed to IP65. Not recommended for installation in industrial environments. Aluminium body, 16 x 14 x 14 mm cube with lightweight PVC cable terminated with a BNC plug.
Applications :-
- Modal analysis
- Research and development
- PCB testing
Looking for "High Sensitivity Accelerometer" ?
Piece
