Vibrating Monitoring System

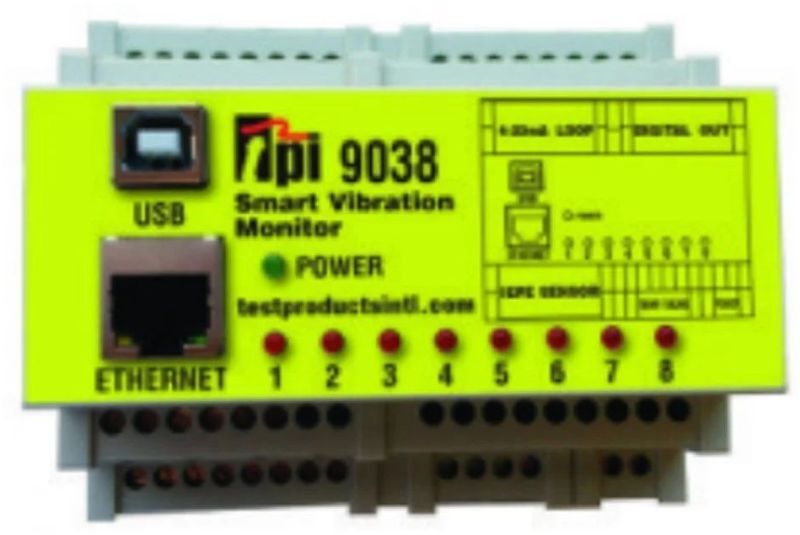

Smart Vibration Monitor – 4 Channel & 8 Channel

Online/Fixed Vibration Monitoring

Features:

• 4 accelerometer channel & 8 accelerometer channel versions
• 24 VDC (relay drive) switched output for each channel (warning/critical, g or velocity)
•  4 to 20 mA output for each channel (g or velocity)
•  Temperature input
•  Tacho input
• USB or Ethernet connection to Smart Vibration Monitor PC software and optional vibration analysis software

Advantages:

• Extremely cost-effective – lowest cost per channel industrial vibration monitor/analyzer
• Very easy to set up using Smart Vibration Monitor PC software
•  24/7 monitoring of critical plant operations

Benefits:

•  Single low-cost unit monitors plant with local alarms and connects to optional C-Trend II high-functionality PC analysis software
• The Smart Vibration Monitor-04 and Smart Vibration Monitor-08 are the new generation of low-price, high-performance installed vibration analyzers from TPI
• With up to 8 accelerometer inputs, 8 digital outputs, 8 analog outputs, temperature and tacho inputs, as well as USB and Ethernet connectivity, the Smart Vibration Monitor-04 and Smart Vibration Monitor-08 modules offer unrivalled price/per-channel performance
•  The analyzers can be used in several different ways
