| Business Type | Exporter, Supplier, Importer |
| Vibration Data Collector |  View |
| Weight | 250 Gm |
| Battery Life | Up to 8 hours |
| Click to view more | |
Product Details
FFT Resolution
3200 lines
Operating Temperature
-20 +50 deg C
Humidity
90%
Size
110 mm x 55 mm x 24 mm
Origin Of Country
India
Product Code
STD-510

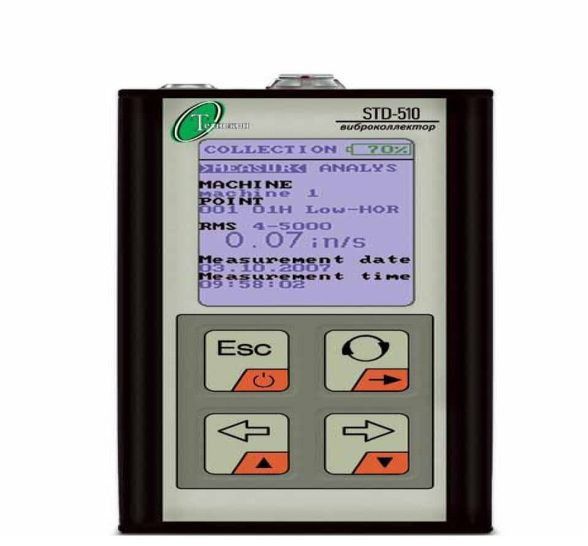

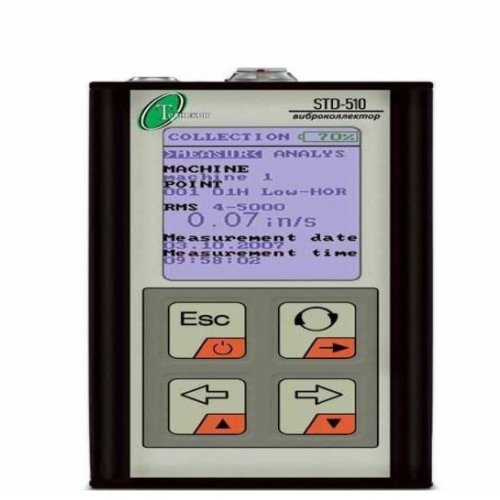

STD-510 Data Collector is used for monitoring and analysis of rotary machine conditions. Thanks to its pocket size, lightweight, functional, and easy-to-operate design, STD-510 is an ideal tool for daily vibration monitoring of industrial equipment.
Highlights:
- Using external sensor with magnetic holder enables you to collect broadband data more accurately and reliably
- Data acquisition and storage: up to 500 waveforms
- USB port to transfer data to computer, upload routes, and download data for in-depth analysis with the Vibrodesigner Analysis Software
- On-site FFT analysis
- Tacho input
- Explosion proof – Ex ib II BT3
On-site Analysis:
- Cursor and coordinates
- In-band values
- Various measurement modes
- Zooming
