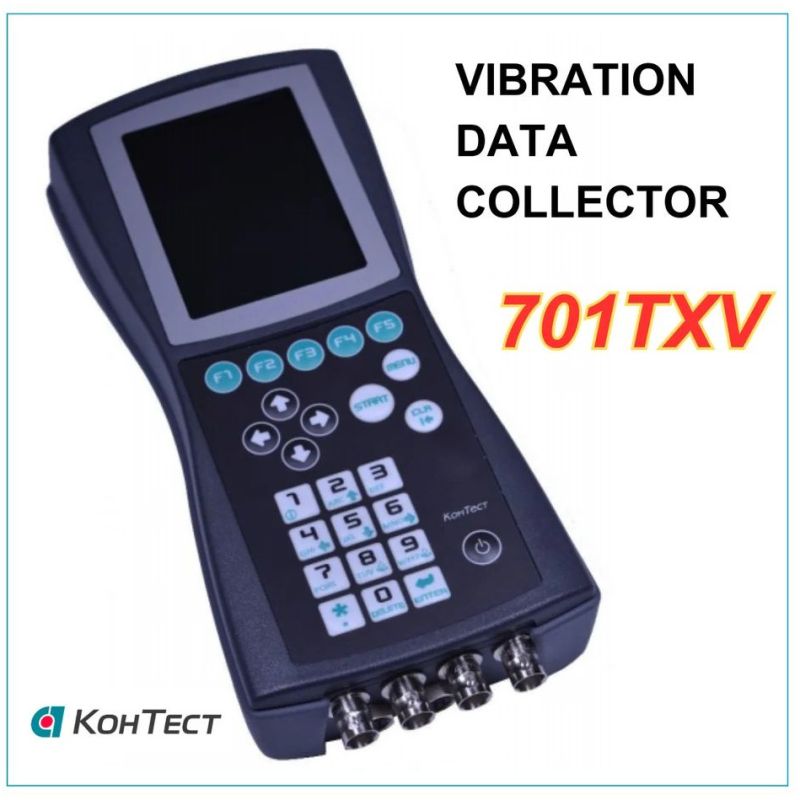

vibration route data collector

Here’s your text with only errors corrected (punctuation, spacing, and minor consistency) Frequency range: 0.5 kHz – 50 kHz. Sampling rate: 1 kHz – 128 kHz. Resolution: 100 – 25,600 lines. Analysis functions: Spectrum, time waveform, with suitable anti-aliasing feature.

Acceleration, velocity & displacement, phase, time waveform, enveloping.

Accuracy: within ±2%.

Types of detection: RMS, peak, peak-to-peak, crest factor, peak detection.

Severity: ISO 10816.

Ruggedized to withstand humidity, temperature, and impact from equipment drops.

Simultaneous 4-channel spectrum display.

All channels can be configured with different frequency ranges, windowing, average type, settings for simultaneous data collection from the channels.

Cross-channel analysis facilities including cross-phase, cross-spectrum, and cross-channel waveform.

Trigger: External, internal, free run. Selectable window: Hanning, Hamming, rectangular, and flat.

Selectable averaging: no average & linear, peak hold, exponential, time, and synchronous average.

Measurement units: English/Metric.

Natural frequency measuring.

Single- and dual-plane balancing.

.
